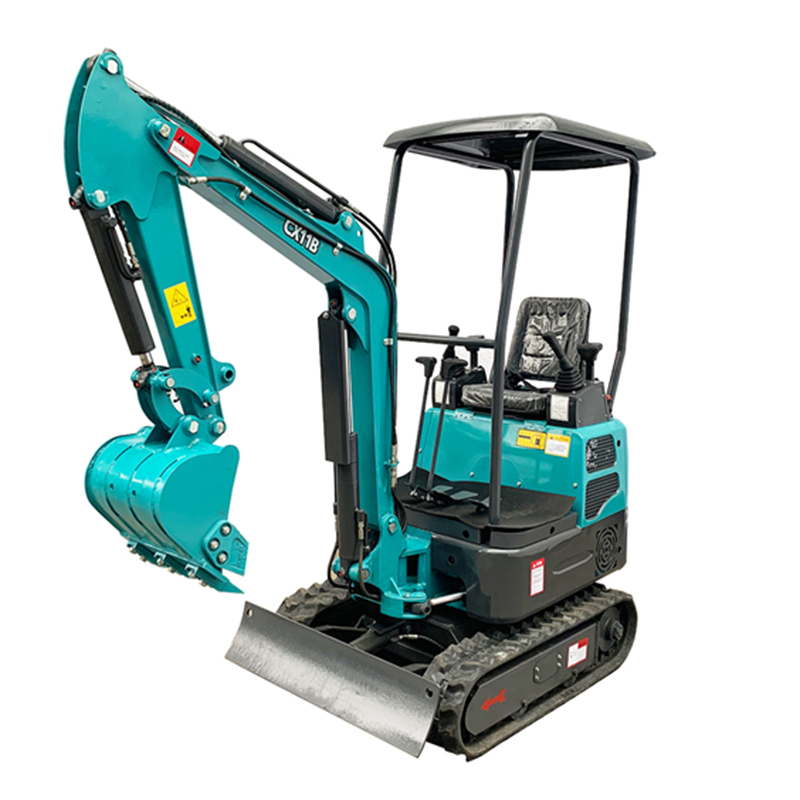

Pilot Operation 1120kgs Hydraulic Crawler Excavator

Products Details

Engine Type, Power, Emission, Certificate: China Gold manufacturer for KOOP Brand 192FS 8.6KW EU-5 Standard Diesel Engine Special Certificate Of Operation Console: Pilot operation system with beautiful appearance,high configuration,superior performance and low fuel consumption . Tubing Brand: Famous German Continental  brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life. Special Evidence: Friendly pilot control for working device Swing Arm rotatable 60 degree, and can work in the corner and the whole machine can be 360 degree rotatable Quality Control: Reliable quality, safe and secure, passed multi-national safety certification,such as GS,CE and Gold supplierUse the quick hitch can add the accessories tools like: Auger,rake,ripper,wood grab,break hammer and 200/300/500/800mm bucket and so on .It is suitable for hoosing soil of vegetable greenhouse,orchards, agriculture , campus ,greening of municipal departments,digging the hole for tree planting of fruit-land nurseries,concrete pavement crushing .Product information and sales tools training ,to help you win great popularity in te local marekt Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service over 90% of products are exported
1.0T Hydraulic Mini Excavator
Machine Type  retert (1)  retert (2) retert (3)
Model CX10T CX11A CX11B
Dimensions Specification Specification Specification
Wheel Tread 1220 mm 1220 mm 1220 mm
Length of track 2664 mm 2664 mm 2664 mm
Ground clearance of upper platform 380 mm 380 mm 380 mm
Turning radius of tail 784 mm 784 mm 784 mm
Width 940 mm 940 mm 940 mm
Width of track 180 mm 180 mm 180 mm
Height of track 320 mm 320 mm 320 mm
Length 2770 mm 2770 mm 2770 mm
Height 1480 mm 1480 mm 1480 mm
Operating range Specification Specification Specification
Working ranges 2850 mm 2850 mm 2850 mm
Maximum digging radius 1650 mm 1650 mm 1650 mm
Maximum digging depth 2610 mm 2610 mm 2610 mm
Maximum digging height 1850 mm 1850 mm 1850 mm
Maximun vertical digging depth 1375 mm 1375 mm 1375 mm
Minimum swing radius 1330 mm 1330 mm 1330 mm
Height of bulldozing plate 345 mm 345 mm 345 mm
Depth of bulldozing plate 255 mm 255 mm 255 mm
Engine type 1-Cylinder    ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission 1-Cylinder    ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission 1-Cylinder    ,4-Stroke,Air-cooled ,Veritical Koop 192FS,Euro 5 emission
Engine power 8.6 KW/11.6HP 8.6 KW/11.6HP 8.6 KW/11.6HP
Operation Weight 1020 KGS 1060 KGS 1120 KGS
Bucket capacity 0.025 m³ 0.025 m³ 0.025 m³
 Arm rotatable or not No rotatable Rotatable Rotatable
Operating system Mechanical valve operation Mechanical valve operation Pilot valve operation
