| ITEM | LS-325 Laser Screed |
| Engine type | Generator Honda EC2500CX (2.6kw, Single cylinder four stroke generator set) |
| Laser Generator | LEICA(Switherland) (635nm visible laser,selfleveling, level error≤±1.5mm/30m, effective launch distance 300m) |
| Laser Receiver | LEICA(Switherland) (effictive receiving distance 300m, accuracy of dead zone≤±2.5mm) |
| Control System | AC SERVO system |
| Drving System PHASE(Italia) | stepless adjustment, turning faster than 1:2.5 |
| Airframe Adjustment system | Level sensor automatic adjusting system |
| Wheel tyre | 733nm ATV(1.8-2.2BAR) or 3.0-21 narrow tyre(1.6-2.1 BAR) |
| Vibrating System | Eccentric vibration motor. 3000HZ |
| Centrifugal force | 100kgs |
| Vibrating plate | Aluminum alloy |
| Scraper blade | Aluminum alloy |
| Scraper adjustment | Computer control, automatic adjustment |
| Working length | 2.6M |
| Reverse Speed | 2.5km/h |
| Min. Ground Clearance | 355mm |
| Ground Flatness | ≦±2mm |
| The Ground elevation error | ≦±7mm/100m |
| Max. working Radius | ≦200m |
| Working Efficiency/hour | 200m²/h--350m²/h |
| Weight | 220kgs |
| Shipping weight | G..W.: 504KGS | N.W.: 352KGS |
| Packing | box 1: 2650×1110×1200MM box 2: 2650×580×820MM |

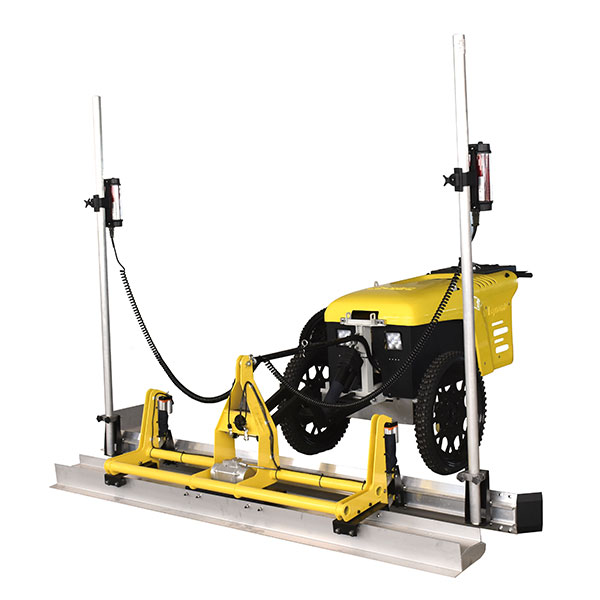

Applications for: A Laser Screed is used to create a level, on a large, flat area of concrete, such asFactories, underground parking lots, airports, train stations, large shopping malls....etc an interior floor, or a poured patio ，slab，deck, high floor .
over 90% of products are exported Focusing on Exclusive Agent and take our customers grow up together We have 6 excellent International sales,2 engineers with 15 years of experience and 3 QC,We keep good quality and competitive price to ensure our customers benefit
“Survive on Quality”.We always attach great importance to quality controlling from the very beginning to the very end. We also obtain worldwide authentication ,such as CE, GS and China Gold supplier and so on.
