GW40-GW50 Manual type

Products Details

1.The high setting model adopted braking motor, insert pin type location disc to ensure the accuracy of bending radian and the convenience of adjustment. 2.The stop gauge can be installed from four different corners to realize the requirement of putting steel bar from various directions. 3.The controlling table adopted rotary type which made the transportation and operation full of humanization.Q: Are you a factory or trading company? A:We are the manufacturer Q: Can you provide the free samples? A:No sample fee for regular products Q: How does your factory do regarding quality control? A: 100% raw material inspection and 10% Finished product inspection. Q: Do you have a minimum order quantity? A: Our MOQ is 50 PCS for very item  Q: Can you OEM or ODM? A:15-25 days after receiving the deposit payment .
ITEM

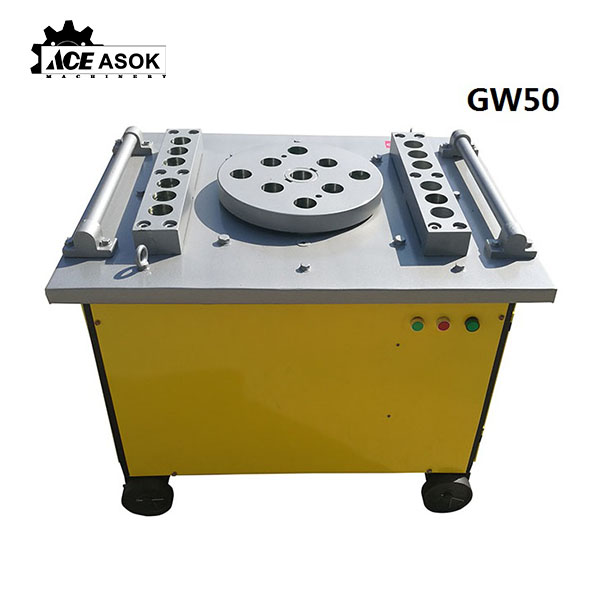

Manual Steel bar bender machine

Model

GW40

GW50

Bending round steel diamete

6-40mm

6-50mm

ⅡGrade thread screw steel diamete

6-32mm

6-42mm

Working plate diameter spec

320mm

420mm

Main shaft speed

8-15r/min

8-15r/min

Motor spec

3KW/380V

4KW/380V

Motor speed

1440t/min

1440t/min

Dimension

890×690×840mm

1020*825*880 mm

Net weight/Gross weight

239kgs/258kgs

340kgs/366kgs

packing size

905*810*945 mmmm

1080×850×980mm

Maximum Quantity of Rebar to Be Bended at One Time

Quantity of rebar to be bended at one time (pc)Maximum diameter of rebar (mm) 1 2 3 4 5 6 7 8
Single bending GW40 ≤450N/mm2 38 30 25 20 16 12 10 8
GW50 ≤450N/mm2 42 34 28 22 18 14 10 8
Doubling bending GW40 ≤450N/mm2 30 18 16 14 10 8 6 4
GW50 ≤450N/mm2 32 25 20 16 14 10 8 6
