Number of blades:10pcs/machine Working diameter and blade specification:Working Diameter with 247 x 117cm for the first trowel and Blade 455*150mm for Finish trowel Adjustable blade:The regulating handle control ensures precise blade adjustable Operating height adjustment:The operating height can't be adjusted. Safety switch control, making machine operation safer:Savety switch under your left foot, just take away your foot then will shut the engine down in the event of the operator losing control of the machine. Safety and complete certification:“Survive on Quality”.We always attach great importance to quality controlling from the very beginning to the very end. We also obtain worldwide authentication ,such as UL, CE, GS and China Gold supplier and so on..

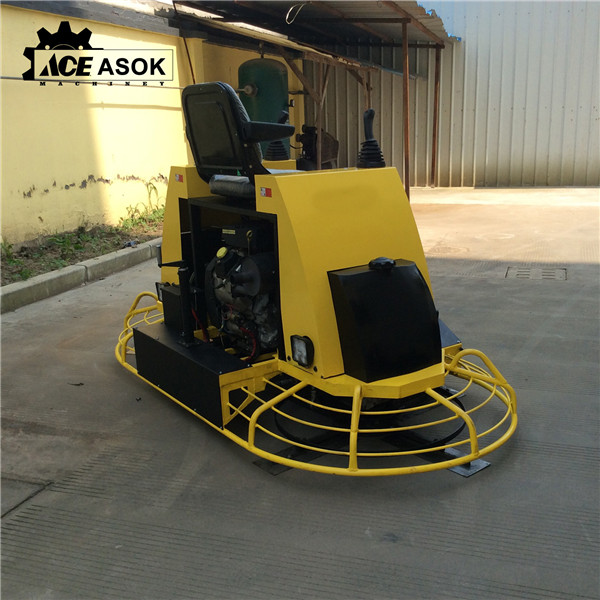

HYDRAULIC RIDE-ON TROWEL ART-96H
Model
ART-96H Hydraulic ride-on power trowel
Operating System
Hydraulic systerm
Weight kg(lb)
598(1316)
Dimension mm(in)
L2540(100)*W1240(48.8)*H1300(51)
Plate Size mm(in)
L2475 (97)*W1175 (46)
Speed
140 rpm
Engine Type
Air-cooled, 4-cycle, Gasoline
Engine Model
Kohler 34HP
Max. output
25.4 kw
Max. speed
3600 rpm
Fuel Tank
15.5 L (4.0 Gal)
Voltage
12V
Current
25A
Working time
3.5 Hours
Applications for: A power trowel is used to create a level, smooth finish on a large, flat area of concrete, such as an interior floor, or a poured patio slab for a deck.Customization : OEM & ODM customized design ,We can change the color/logo according to your personal requirements. Product information and sales tools training ,to help you win great popularity in te local marekt Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service
ACCESSORIE 1: Finishing blade: Style 07 Thickness: 1.7mm Size: 455*150mm Weight: 4.6kg/set(5PCS) Suit for other TROWEL brand: 1. OX 46 inch 2. Bartell 48 inch 3. Whiteman 48 inch 4. Wacker 46 inch 5. Allen 46 inch
ACCESSORIE 2: Float pan: Plate 07A(double brackets) Thickness: 2.8mm Diameter: 1200mm Suit for other TROWEL brand 1. OX 46 inch Ride-on 2. Bartell 48 inch Ride-on 3. Whiteman 48 inch Ride-on 4. Wacker 46 inch Ride-on 5. Allen 46 inch Ride-on
Applications for: A power trowel is used to create a level, smooth finish on a large, flat area of concrete, such as an interior floor, or a poured patio slab for a deck.
Customization : OEM & ODM customized design ,We can change the color/logo according to your personal requirements. Product information and sales tools training ,to help you win great popularity in te local marekt Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service
