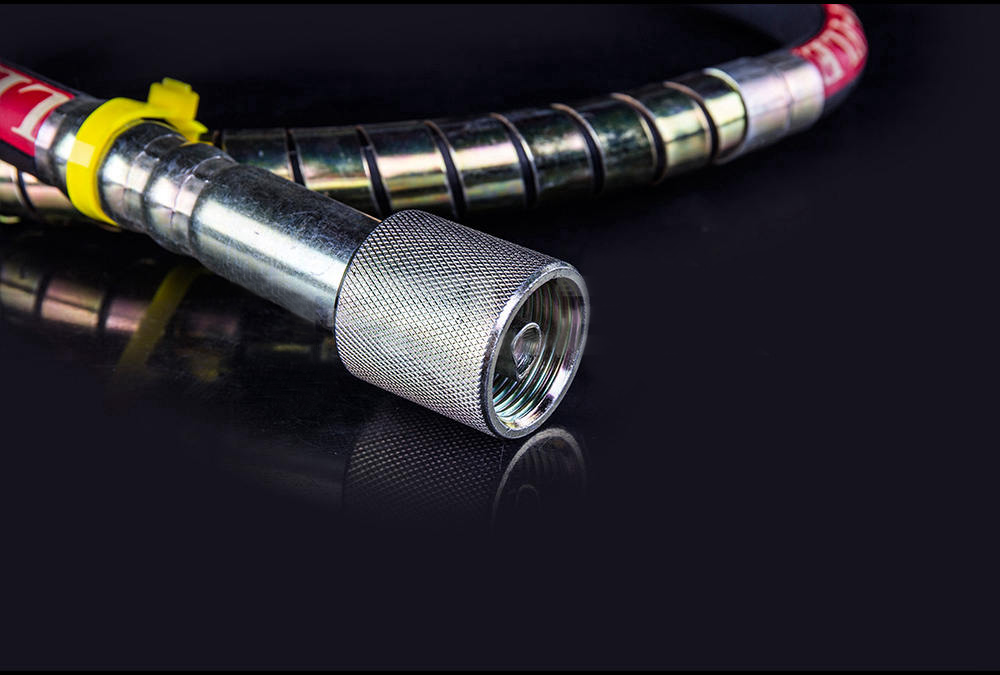

Product Name:High Speed type Turkey type Concrete vibrator shaft Head size:Vibrator head is from 35mm/38mm//45mm/50mm Material of hose:Rubber hose base on 65Mn steel ling with 16~18mm width and 1.75mm thickness ,the hardness is 80~90 degree and 1000~1100n tension Material of flexible shaft:The torsional of flexible hose  is 65N.m with 5~7 layers and 65MN steel Quality control:For Flexible hose, we have done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly  Customization : OEM & ODM customized design ,We can change the color/logo according to your personal requirements. All our products have the certification which need in all over the world, we can offer the CE certification as the basic and also the other which asking from you. ACE tools are approved by industry standards such as CE and CCC. 24 hours on-line service reply to customer questions.Q: Are you a factory or trading company? A:We are the manufacturer Q: Can you provide the free samples? A:No sample fee for regular products Q: What are your prices? A: Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool. stable operation/good mechanical performance/low noise/good anti-wear performanceACE company have produce many different type and models form 25mm/28mm/32mm/35mm/38mm/45mm/50mm/60mm/ 70mm/75mm,and differerent lengths almost from 1 to 12m for selection . Guaranty of operation time: 200 hours 1. We can guarantee a 200-hour operation time for our concrete vibrator shaft. 2. If the concrete vibrator is broken or does not operate properly during the warranty period, we will replace the defective components (but not the worn parts) for free if the users follow the regulations of transportation, storage, and usage. 3. There is no accountability for man-made destruction. 4. We may provide online support if the buyer has any technical inquiries regarding our items.

Item	High-frequency concrete vibrator shaft
Model	￠(mm)	ZX-35	ZX-38	ZX-40	ZX-45	ZX-48
Diameter of head	￠(mm)	35	38	40	45	48
Length of head	L (mm)	330	380	335	390	335
Vibrating Frequency	(HZ)	200	200	200	200	200
Vibrating Ampitude	(mm)	0.91	1.1	1.2	1.2	1.3
Diameter of flexiable hose	D(mm)	30	30	30	30	30
Diameter of flexiable shaft	D(mm)	10	10	10	10	10
