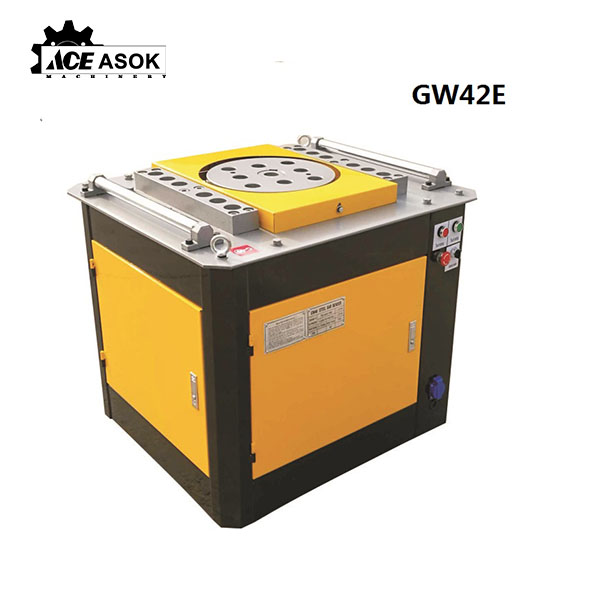

GW42E-GW50E Automatic type

Products Details

1.Adopt the totally enclosed type case so that distortion which happened under the condition of heavy load can be avoided. 2.Gear and gear shaft was made by high quality of structural steel, and the important parts under gone hardness treatment. 3.Working disk, stop gauge, pile head, and pile head casing were made by high quality of alloy steel which under gone hardness and treatment, together ensure a long working life.Q: Are you a factory or trading company? A:We are the manufacturer Q: Can you provide the free samples? A:No sample fee for regular products Q: How does your factory do regarding quality control? A: 100% raw material inspection and 10% Finished product inspection. Q: Do you have a minimum order quantity? A: Our MOQ is 50 PCS for very item  Q: Can you OEM or ODM? A:15-25 days after receiving the deposit payment .
ITEM

Automatic Steel bar bender machine

Model

GW42

GW50A

Bending round steel diamete

6-42mm

6-50mm

ⅡGrade thread screw steel diamete

6-32mm

6-42mm

Working plate diameter spec

320mm

420mm

Main shaft speed

8-15r/min

8-15r/min

Motor spec

3KW/380V

4KW/380V

Motor speed

1440t/min

1440t/min

Dimension

910*910*890 mm

1060×830×890mm

Net weight/Gross weight

287kgs/307kgs

340kgs/360kgs

packing size

930*930*990 mm

1080×850×990mm

Maximum Quantity of Rebar to Be Bended at One Time

Quantity of rebar to be bended at one time (pc)Maximum diameter of rebar (mm) 1 2 3 4 5 6 7 8
Single bending σb ≤450N/mm2 42 30 26 22 18 14 10 8
≤650N/mm2 36 26 22 20 16 12 8 6
≤850N/mm2 32 24 20 18 14 10 6
GW40 ≤450N/mm2 38 30 25 20 16 12 10 8
GW42A ≤450N/mm2 40 30 25 20 16 14 10 8
GW50 ≤450N/mm2 42 34 28 22 18 14 10 8
Doubling bending σb ≤450N/mm2 30 22 20 18 14 10 8 6
≤650N/mm2 28 20 18 16 12 8
≤850N/mm2 26 18 16 14 10
GW40 ≤450N/mm2 30 18 16 14 10 8 6 4
GW42A ≤450N/mm2 30 20 18 14 10 8 6 4
GW50 ≤450N/mm2 32 25 20 16 14 10 8 6
